Fitment Information

• Ford F150 Raptor P702 Turbocharged 3.5L V6 (2021, 2022, 2023, 2024, 2025)

• Ford F150 Raptor R P702 Supercharged 5.2L V8 (2023, 2024, 2025, 2026)

• Ford F150 Police Responder P702 Turbocharged 3.5L V6 (2021, 2022, 2023, 2024, 2025, 2026)

• Ford F150 P702 FULL HYBRID EV-GAS (FHEV) 3.5L V6 Turbocharged (2021, 2022, 2023, 2024, 2025, 2026)

Specs & Features

• 2-Row - 42mm Ultra-High-Performance Core

• Cooling Tubes with CSF's Exclusive B-Tube Technology

• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

• CNC Machined Mounting Pins and Brackets

• OEM Style Inlet/Outlet

• 100% All Aluminum TIG-Welded Construction

• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

• Individually Leak and Pressure Tested

• 2-Year Limited Warranty

Product Details

Upgraded cooling systems are not just for off-road rigs and big haulers. Even basic mods/upgrades like oversized tires can increase strain on your engine in adverse conditions. The CSF Radiator provides extra protection that:

Extends engine life by maintaining optimal coolant temperatures
Improves towing capacity by enhancing cooling efficiency
Eliminates performance limitations during demanding driving conditions
Provides peace of mind with superior construction and durability
When engine coolant overheats, performance suffers and you are forced to stop driving or risk a cooling system failure. CSF & Full-Race engineers identified this vulnerability during extensive real-world testing of F-150 and Raptor models under demanding conditions. Having to stop and wait for your engine to cool down is more than just an inconvenience, it is a limitation that shouldn't exist in modern trucks. Especially not a Raptor.

Design & Engineering

An upgraded radiator helps eliminate the concern of overheating. This advanced design features larger 2-Row, 42mm aluminum cores which increases the fluid capacity of the radiator and greatly improves heat dissipation. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the ultra-efficient multi-louvered 5mm fins maximize airflow through the core for the best possible performance. The result is a dramatic temperature reduction under all driving conditions.

Instead of waiting for your factory radiator to fail or putting up with power loss due to high engine temps, you can get ahead of the problem with the CSF Radiator. Upgrading to the CSF Radiator offers a lot of advantages including:

60% larger core volume than the factory radiator

100% TIG welded Aluminum construction (compared to plastic end tanks crimped)
Core straps for strength and added rigidity for extreme reliability in demanding conditions
Ideal for turbo upgrades, high power/boost builds, towing, and off-roading.

5mm Core Upgrade

While the first prototypes with CSF's 6.5mm fin performed extremely well in testing, CSF always seeks to offer the ultimate cooling solution. Before going into final production the design was updated to incorporate CSF's latest 5mm fin technology which was introduced at the end of 2023. This new core specification offers even more heat transfer area and thermal efficiency than the tested prototypes. CSF is confident this radiator is ready to take on the most demanding conditions in the world.

Plug and Play Installation

CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation takes under an hour and greatly improves the reliability and longevity of your engine.

Make it a package

CSF offers a High-Performance Transmission Oil Cooler for the 2015-2025 F-150 & 2017-2020 Raptor (CSF #8102) that perfectly compliments the upgraded Radiator. The CSF transmission oil cooler eliminates the concern of overheating. The advanced design features CSF's proprietary AC Condenser Technology, utilizing a 1-Row Super-High Pressure 26mm 10-Channel Microtube architecture that maximizes both oil flow and cooling surface area. The result is dramatic temperature reduction under all driving conditions.

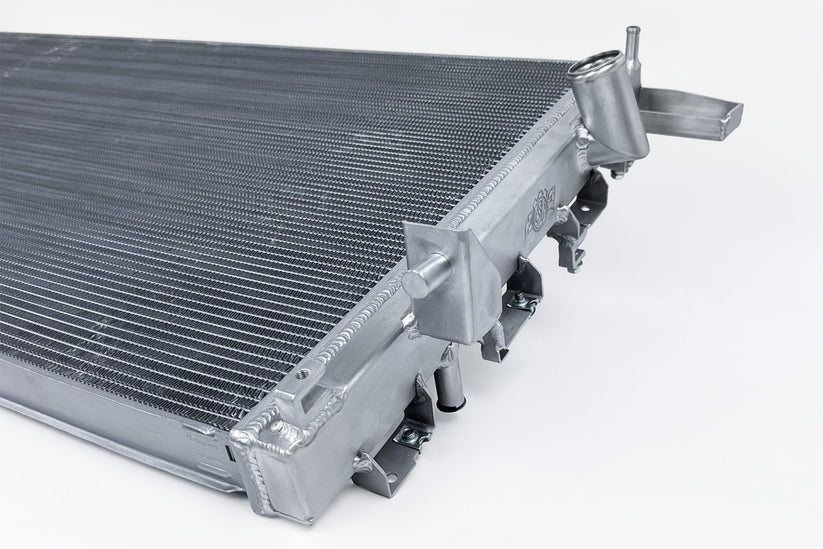

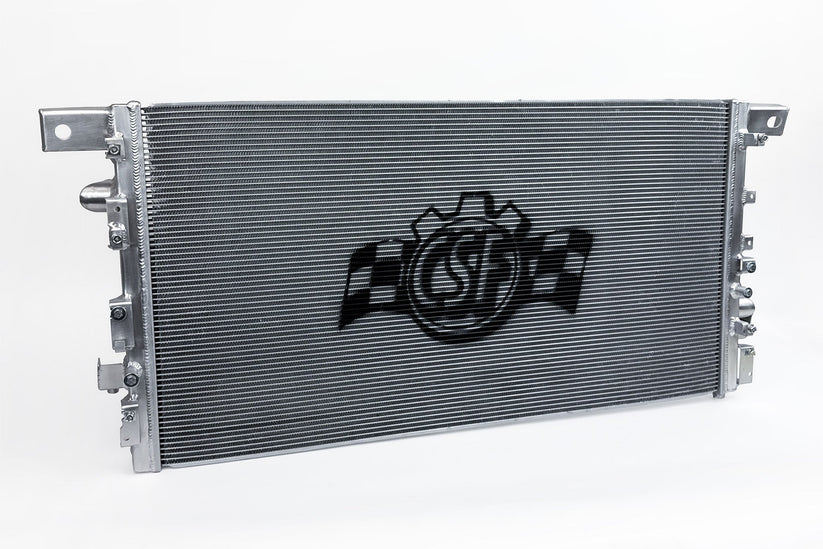

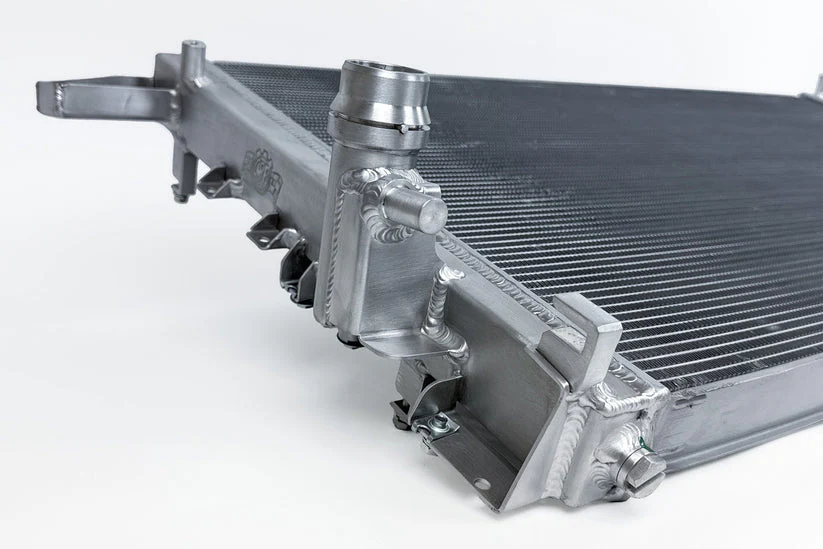

Note: Image is a representation of the quality and design of the CSF radiator. Your application will look different due to your OEM radiator style.
