Fitment Information

• Acura Integra DC2/DC4 3rd Gen 1.8L B18B1 / B18C1 / B18C5 (1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001)

Specs & Features (for 1 Row for Manual Transmission)

• Made of High Quality Full T-6061 Aluminum Construction
• 1-Row Tri Core Light-Weight Racing Design , Overall Size: 14.25" W x 18" H x 1.25" D

Specs & Features (for 2 Row with Fan Shroud for Automatic Transmission)

• Stronger & Higher Capacity for Coolant than Stock Units

• Made of High Quality Full T-6061 Aluminum Construction

• Light Weight Direct Bolt-On OEM Fitment or Replacement

• High Performance JDM Spec. 2-Row Racing Design

• Automatic Transmission Cooling Ports

• Overall Size: 14.50" x 16.50" x 1.75"

• Core Size: 14.25" x 13.75" x 1.50"

• Inlet/Outlet: 1.25"/ 1.25?

• Improves Cooling by 35 - 45% Temp.

• Pre-Assembled with Aluminum Fan Shroud

Specs & Features (for 3 Row for Manual Transmission)

• Lightweight Bolt-On Other Replacement
• 100% Brand New; Professional Installation is Highly Recommended; Instruction is NOT Included

Specs & Features (for 3 Row with Fan Shroud for Manual Transmission)

• Stronger & Higher Capacity for Coolant than Stock Units

• Made of High Quality Full T-6061 Aluminum Construction

• Light Weight Direct Bolt-On OEM Fitment or Replacement

• High Performance JDM Spec. 2-Row Racing Design

• Automatic Transmission Cooling Ports

• Overall Size: 14.50 in. x 16.50 in. x 1.75 in.
• Core Size: 14.25 in. x 13.75 in. x 1.50 in.
• Inlet/Outlet: 1.25 in./ 1.25 in
• Improves Cooling by 35 - 45% Temp.

• Pre-Assembled with Aluminum Fan Shroud

Pairs well with:

• K&N Cold Air Intake Acura Integra GS-R 1.8L B18C1 (1994-2001) CARB Legal 57-3509 A CARB-exempt cold air intake to complement the radiator upgrade on B18C1 GS-R builds. An intake and cooling upgrade together address both the air in and the heat out on any B-series build.

OEM Part Numbers Cross Reference

• Manual Transmission (SAK type): Honda/Acura 19010-P75-A53 / Partslink AC3010104
• Automatic Transmission with cooler (TOYO/DENSO type): Honda/Acura 19010-P73-013 / Partslink AC3010101

The OEM Integra radiator used different part numbers for manual and automatic transmission applications due to the AT cooler port on the automatic version. Confirm which part number matches your existing radiator before cross-referencing. The 2-Row fan shroud variant on this listing replaces the automatic transmission (AC3010101) assembly.

Frequently Asked Questions

• Does this fit both manual and automatic Integras?
  Select if your car is manual or auto when ordering.
• Does the fan shroud come pre-assembled?
  Yes. The aluminum fan shroud is pre-assembled onto the radiator in the box. You do not need to purchase or mount the shroud separately. It is designed to work with your factory cooling fan or an aftermarket slim fan.
• Can I reuse my factory radiator hoses?
  Yes. The inlet and outlet connections match the OEM dimensions, so your factory upper and lower radiator hoses bolt right back on. No new hoses are required unless your existing hoses are worn.
• Why replace the factory radiator on an Integra?
  The factory Integra radiator uses plastic end tanks bonded to an aluminum core. As these cars age, the plastic tanks crack or the seam seals fail, causing coolant leaks and overheating. The DNA aluminum radiator replaces the entire unit with a fully welded all-aluminum construction that eliminates those failure points. It also carries more coolant than the OEM unit, which improves resistance to heat soak on modified or B-swapped builds.

The factory Integra radiator uses plastic end tanks that crack and leak as the car ages, making an aluminum replacement the most common first cooling system upgrade on any DC2 build. For automatics, The DNA 2-row with fan shroud is specifically designed for automatic transmission Integras and includes factory-matching AT cooler ports so you do not need to modify or bypass your transmission cooler lines. The pre-assembled fan shroud ensures the cooling fan draws air through the entire core rather than pulling hot air from the engine bay. Whether you are running a stock B18B1, a B18C1 GS-R, a B18C5 Type R swap, or a turbocharged B-series build, the full T-6061 aluminum construction handles much more heat than the factory plastic unit and has higher coolant capacity to resist temperature spikes under race or track use.

Product Description

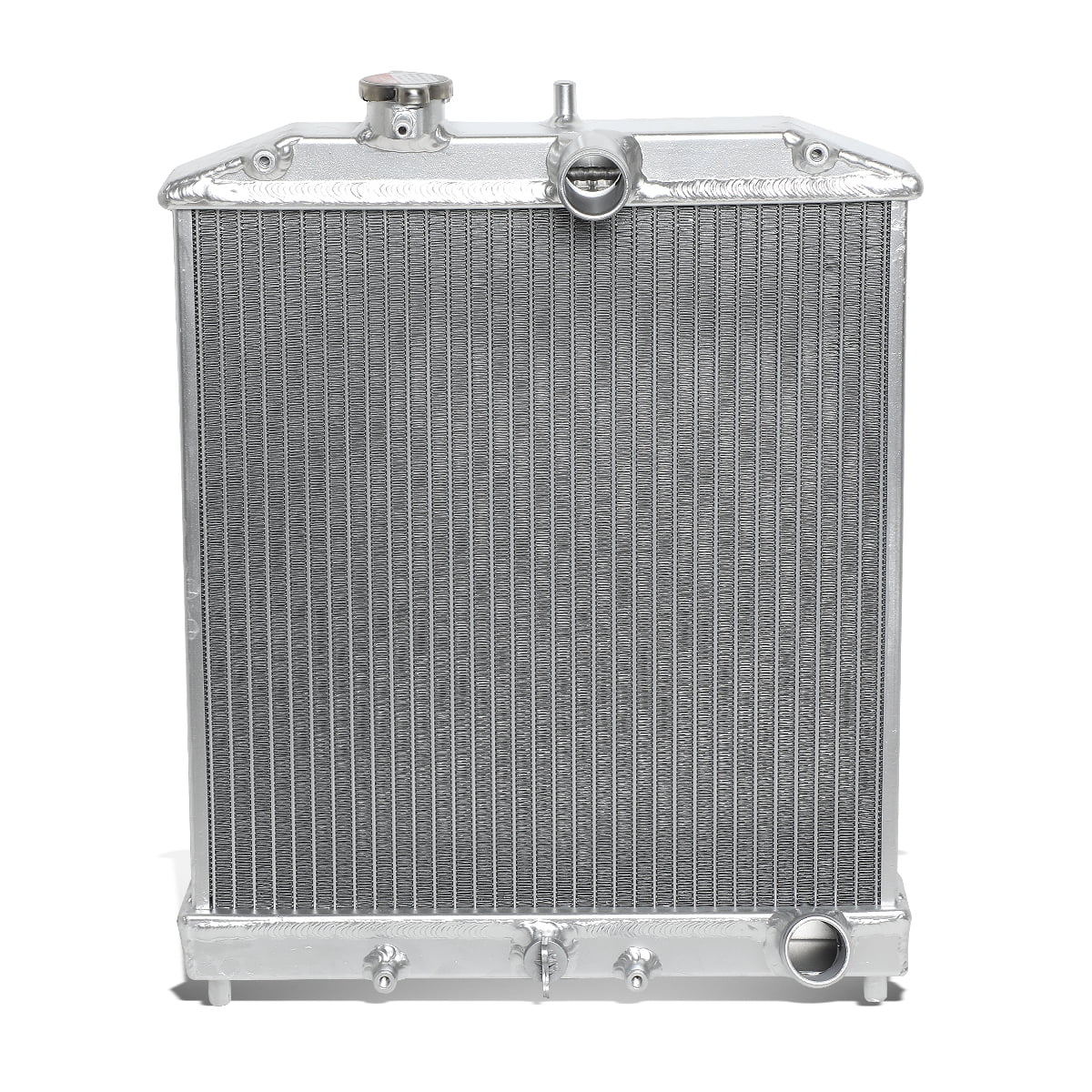

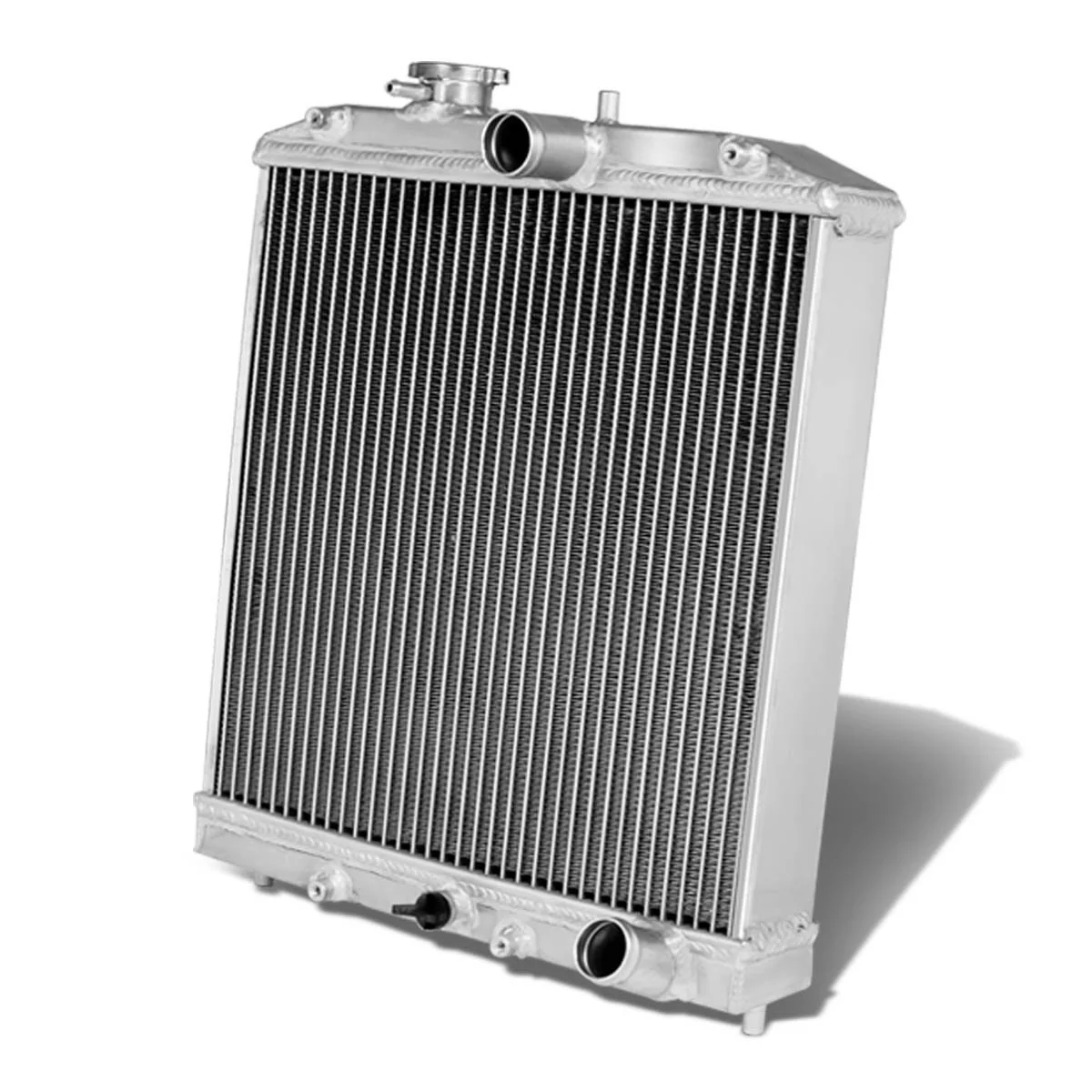

This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
