Fitment Information

• Compatible with the following fuel pumps:
  • Walbro F90000267
  • Walbro F90000274
  • Walbro F90000285
• Compatible with the following vehicle models:
  • Mazda FD RX-7 US (1993-1995)
  • Mazda FD RX-7 JDM (1992-2002)

Specifications

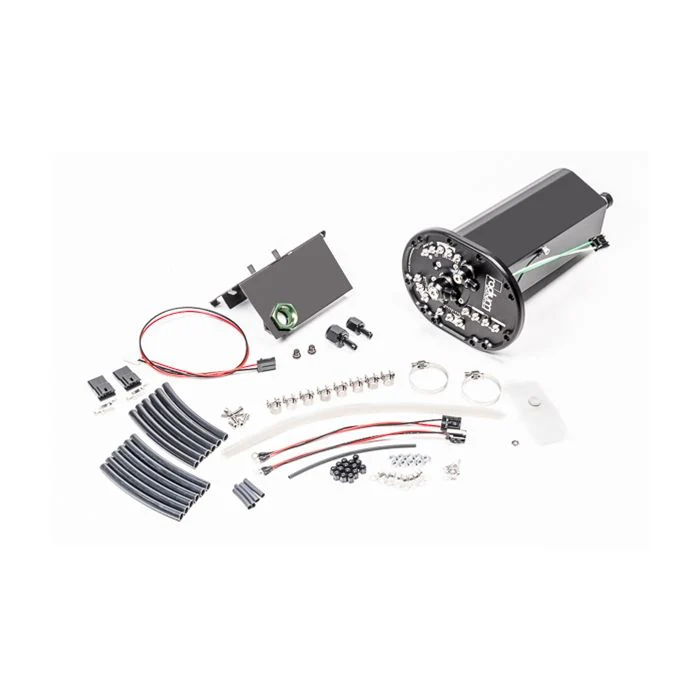

• The Radium Engineering fuel surge tank hanger permits the use of 1, 2, or 3 aftermarket high pressure pumps and 1 lift pump in the stock Mazda FD RX7 fuel tank.
• Drop-In OEM Replacement

• Permits 1-3 Surge Pumps plus 1 Lift Pump

• 8AN Male Pump Outlet Fitting

• 6AN Male Return Inlet Fitting

• Fuel Starvation Protection

• High Current Electrical Hardware

• Compatible with Various Pumps

• Anodized Aluminum Construction

• Gasoline and Ethanol Compliant

• Anodized Aluminum 8AN Male Fitting for Feed

• Anodized Aluminum 6AN Male Fitting for Return

• Anodized Aluminum 8.5mm Barb Hose Ends for OEM Feed/Return

• Anodized Aluminum Surge Tank Canister

• Anodized Aluminum OEM Fuel Sensor Mount

• Anodized Aluminum Lift Pump Baffle and Check Ball

• Fuel Resistant Submersible PTFE Tubing

• Fuel Resistant ETFE Insulated Wiring

• Stainless Electrical and Mounting Hardware

• Stainless Steel Mesh Triple Pump Filter

What Include's

• Fuel Filter (-03 Stainless, or -05 Microglass)

• Fuel Filter Heat Exchanger Bracket (Laser engraved graphics may vary)

• FD RX7 Fuel Filter Mount

• 8AN PTFE Fuel Feed Hose

• Radium Fuel/PCV 1/2" Hose

• Black 8AN Adapter Fittings

• Black 8AN Hose Ends

• Stainless Steel Hardware

NOTE: Pumps Not Included

Product Description

A fuel surge tank (FST) is the best solution in preventing fuel starvation. Because the FD RX7 can experience high lateral Gs, it inherently suffers from fuel slosh. Fortunately, Mazda manufactured a gas tank with a very large bolt flange pattern (similar to the FCST) permitting various upgrading options.

For a proper FST to function, a lift pump is necessary to maintain volume within the surge tank. This lift pump is located in the rear portion of the OEM sub tank within the Mazda gas tank. Included in the kit is a lift pump mount that snaps onto 3 sides of the OEM sub tank. It also serves as a baffle keeping the lift pump supplied with fuel. Measures were taken to ensure that the lift pump always has fuel to deliver to the surge tank.

The lift pump sends low pressure (high volume) fuel in the FST through a special deflector in the bottom of the surge tank canister. The 24 hole diverter evenly disperses fuel inside the canister preventing air bubbles and foaming. When a low demand for fuel is present, the canister will overflow back into the OEM sub tank.
