Fitment Information

• Porsche Macan 95B (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 2025)
• Porsche Macan GTS 95B (2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 2025)
• Porsche Macan S 95B (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 2025)
• Porsche Macan Turbo Typ 95B (2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 2025)

Specs & Features

• Bolt Pattern: 5/112
• Center Bore: 66.5
• Bolt or Stud: Bolt
• Thread Type: 14x1.5
• Sold as a pair
• Series Option:
  • DR Series - DR Series spacers fit between the wheel and hub, and require longer wheel bolts (ordered separately.) Please verify bolt specifics before ordering (taper or round bolt head and shaft length.)
  • DRA Series - DRA Series spacers bolt to the hub with special wheel bolts (included) and provide new threaded holes for the existing wheel bolts.

Product Description

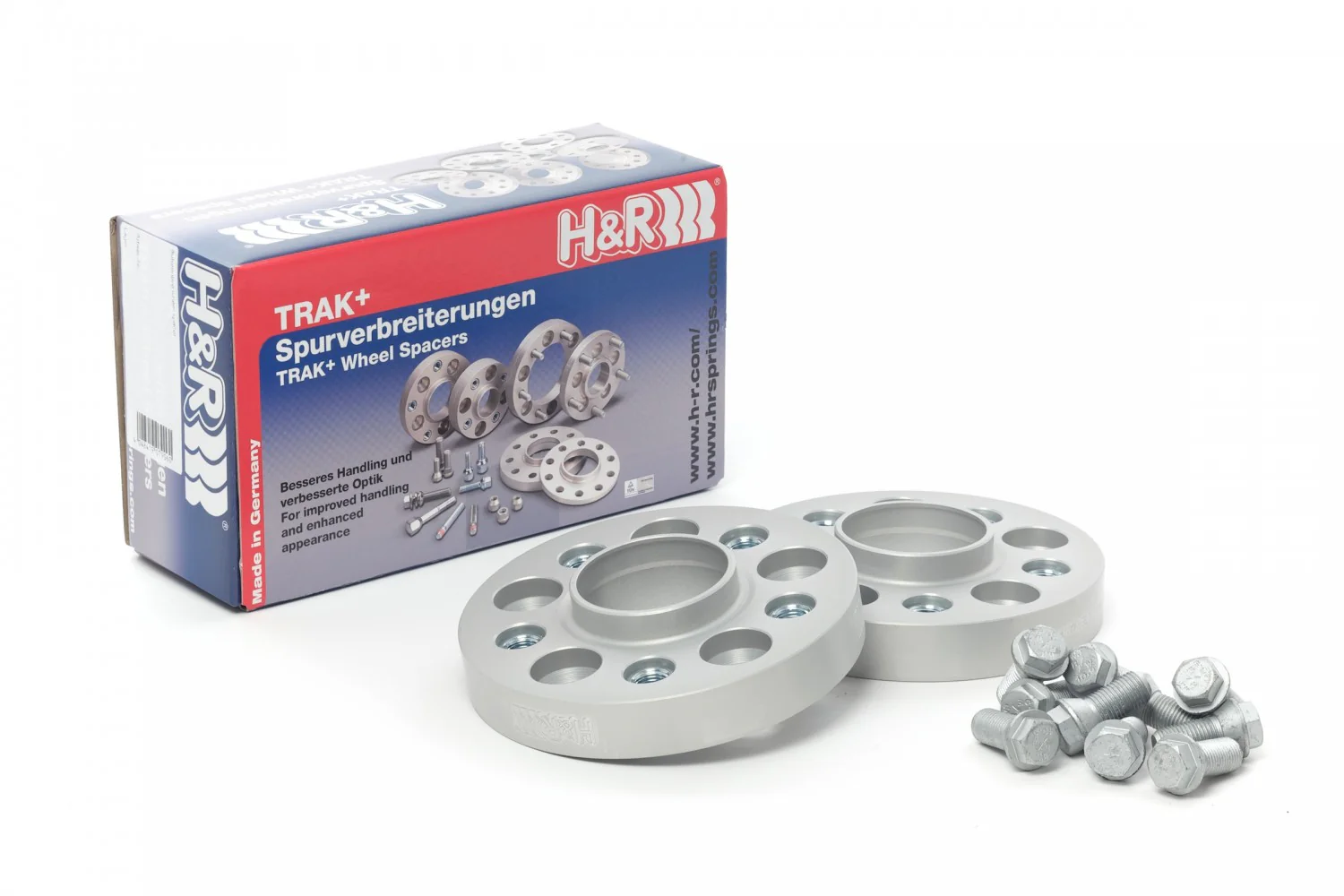

Wider is Better! H&R TRAK+ Wheel Spacers move your wheels and tires outwards so they are more flush with the fender‚ instantly giving your vehicle the perfect stance. High end sports car manufacturers use every millimeter of fender space available in their design for the best looks and highest performance and so should you. With TRAK+ you can fill the gap in your fenders and GO WIDE!

TRAK+ Wheel Spacers are manufactured from a special proprietary alloy specifically developed for H&R that is lighter and has a higher tensile strength than 6061-T6 billet aluminum. H&R TRAK+ Wheel Spacers are hubcentric and feature a full contact hub‚ just like the factory hub‚ for even load force distribution and lateral support.

Important

3mm / 3mm Black / 5mm / 5mm Black DR Wheel Spacer:

• These are hub-centric flat disc type spacers which require the factory hub to center the wheels. Please measure the vehicle hub to verify sufficient height will remain to center the wheel after spacer installation.

10mm / 10mm Black / 12mm / 12mm Black DR Wheel Spacer:

All DR-Systems require longer wheel bolts. These must be ordered separately. When ordering wheel bolts, please follow these guidelines:

a) If possible, name the brand of wheel.

b) New bolts must be longer than the original bolts by the width of the wheel spacer used.

c) The bolt head must be identical to the existing bolt:
Taper 60° End digit 01
Round head for M12/d24 mm, for M14/d28 mm End digit 02
Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03
Flat head for Porsche original wheels M14 x 1.5 End digit 06

d) Safety guidelines
(Minimum number of turns for wheel bolts / nuts):
M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length

e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

22mm / 22mm Black DRA Wheel Spacer:

• The OE wheel bolt must have a fully threaded shank and must be shorter than the thickness of the spacer to avoid interference with the hub face
